Guide Thermal TK612

I'm still waiting for a reply from Guide as to the status of the TK612s, which are apparently delayed by component shortages. It may be that the TK612 will no longer be available, so I've reluctantly removed the order option until I hear otherwise. We have the Pixfra A613, which has a field of view around 10º less and no HDMI output so it can't be used with our screen, but does have built-in WiFi so can be viewed on a tablet or phone via an app. If you do a lot of emergence surveys, I can now supply the Thermal Vision Ecology Kit which makes the whole operation much easier and, though more expensive, will save you a lot of time and money on analysis (and detect more bats and show flight paths).

INTRODUCTION
Equipped with the new self-developed infrared detector and the patented image processing technology, the TK Gen2 Series captures sharp imaging and is packed with powerful features like image and video recording, smooth zoom, pseudo-color adjustment, approximate ranging and PIP. Personalised image observation is supported in different scene modes. The built-in laser indicator and illuminator facilitate itself to be operated in harsh environment.

FEATURES & BENEFITS
  •   New self-developed infrared metal detector with high sensitivity
  •   PureIR adaptive filtering algorithm for sharp images in complex environments
  •   Built-in laser indicator to locate the targets up to 200m
  •   0.4-inch 1280x960 display for comfortable observation
  •   Differential buttons for easy operation in total darkness
  •   The connected app via WIFI for remote control, live image and video transmission
  •   Designed to be operated under extreme environmental conditions with IP66 and 1-meter drop test

APPLICATIONS
  •  Bat Surveys
  •  Ecology
  •  Night Hunting
  •  Search & Rescue
  • Law Enforcement
  • Night Patrol
  •  Outdoor Sports
  • Security

TK612 has a 640 x 480p ⩽30mK sensor, 0.4" FLCOS 1280 x 960 display, 10mm lens with 44.3° field of view, 1.1x optical zoom, 1~8x digital zoom, 2 built-in 18650 batteries (6000mAh), ⩾4.5 hours battery life, USB-C for charging and data transfer, microHDMI for video interface, 1/4" tripod socket, diopter adjustment -4 to +2, records photo/video, hot spot tracking, PiP, 6 colour palettes, WiFi, laser indicator (up to 200m), illuminator, 16GB memory capacity (built-in), -30°C - 60°C operating temperature, 1m drop tested, IP66, ⩽490g, 192 x 65 x 71mm, power adaptor, USB-C cable, microHDMI cable, lens cap, wrist strap, inner bag, shoulder strap, quick start guide.

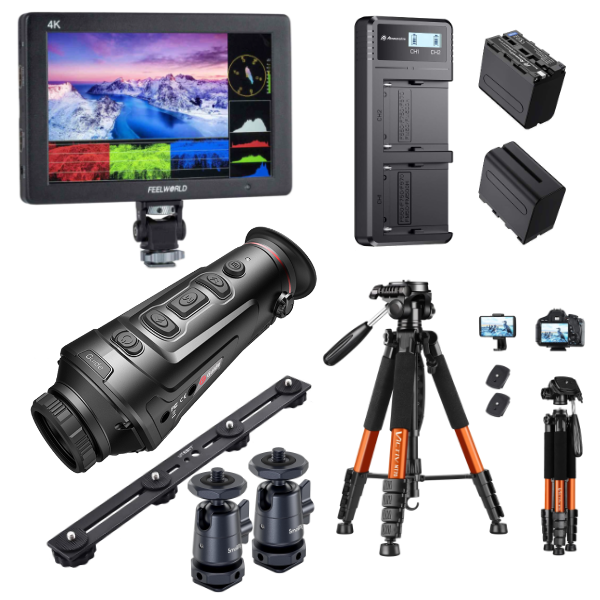

Also available as an Ecology Kit with tripod, 30cm bracket, SmallRig mini ball head, 7" screen with batteries & charger.
    PriceFrom £1,800.00
    Sales Tax Included
