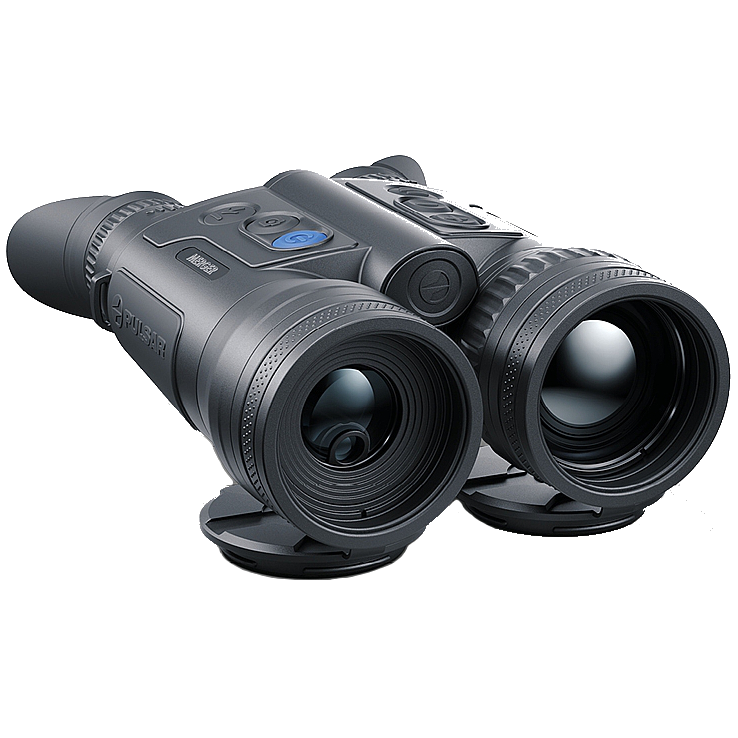

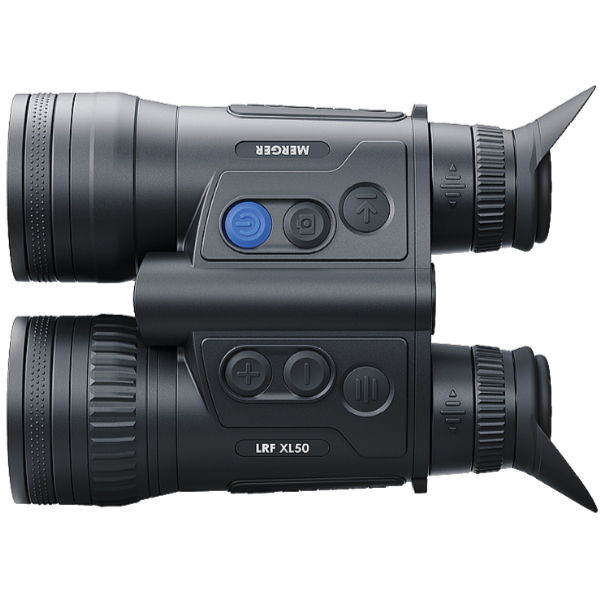

Pulsar Merger LRF XL50 thermal camera

Pulsar Merger LRF XL50 thermal camera

New HD 1024x768 @ 12 µm thermal sensor

The new Merger LRF XL50 thermal imaging binoculars offer a next level thermal imaging experience. The image generated by new 1024x768 thermal sensor features high definition and rich detail. It is ideal for uncompromised trophy identification - silhouettes, anatomical features, and behavioural peculiarities of observed animals are incredibly distinguishable.

High image detail across the whole 2.5-20x magnification range

The Merger LRF XL50's variable 2.5-20x magnification provides improved focus and better overall object recognition at significant distances. The HD-sensor allows the user to maintain high levels of image detail over the entire magnification range. The zoom changes either gradually in 2x step or continuously for a customized FOV/magnification ratio for each specific situation.

Wide field of view

These intuitive thermal imaging binoculars offer a wide field of view for easy scanning and spotting. Users can explore landscapes in HD-quality, with a wide 14 degrees FOV and optimal 2.5x magnification. The large-format sensor allows the Merger LRF XL50 to achieve best-in-class FOV/magnification ratio even at high zoom levels of up to 20x.

Extra-long 2300m detection range

Uses an incredibly powerful objective lens in combination with professional grade 1024x768, 12µm, <40mK NETD HD thermal sensor to provide exceptional detection capabilities in darkness at distances of up to 2300m!

Classic binocular design

Just like its predecessor, the Merger LRF XL50 has been built with the classic design of daytime binoculars in mind. With a small form factor, these thermal imaging binoculars fit comfortably in the hand, but still offer appealing external aesthetics and exemplary ergonomics. Six function buttons are placed in a comfortable, easy-to-access arrangement, with the most-used digital device functions activated with just a single touch.

Comfortable viewing experience with both eyes

The optical design fully considers the nature of human vision; It is natural for a person to receive visual information through two visual channels simultaneously, viewing with two eyes is less tiring than viewing with one - this means users are able to achieve better detection of small or faint objects, and experience greater levels of performance in low-contrast scenarios than similar monocular-style thermal imaging devices with the same technical abilities. The Merger LRF XL50's interpupillary distance is adjustable from 62 to 74 mm in accordance with the individual characteristics of a particular user.

Precise laser rangefinder with 1000m measuring distance

Understanding the target distance is an essential factor when it comes to a hunter making informed decisions out in the field, which is why the Merger LRF XL50 feature a built-in precision laser rangefinder, offering a measuring range of up to 1000m with an accuracy of ± 1m and allows for distance measurements in single measurements and continuous scanning modes for quick and error-free assessment in any situation.

Combined dual battery system

The Merger LRF XL50 is powered by two rechargeable batteries - one built-in with a capacity of 4 Ah, the other replaceable with a capacity of 3.2 Ah. A single charge guarantees a long battery life of up to 8 hours (depending on temperature). An embossed effect on the body of the replaceable battery has been incorporated to allow for fast and accurate determination of correct battery position, making quick and confident replacement of flat batteries easy, even in complete darkness by touch.

3 levels of sensitivity amplification

Selection of the signal amplification level, combined with new filtration algorithms with fine brightness and contrast adjustments, offers excellent opportunities for long-range observation in diverse weather and temperature conditions. Amplification settings help to define an animal’s trophy features and ensures clear rendering of objects and background in the field of view.

Fast aperture 50mm f1.0 germanium objective lens

The Merger LRF XL50 uses a powerful 50mm f1.0 germanium objective lens that offers high infrared transmission in the LWIR range, resulting in a thermal image that is incredibly well-distinguished, and achieving astounding levels of both clarity and detail.

Rugged magnesium alloy housing

Designed for constant, often hard use, the Merger LRF XL50 thermal imaging binoculars uses a rugged yet lightweight magnesium alloy housing that reliably protects the internal components of the device from shocks, drops, moisture, heat, or cold. This metal housing effectively dissipates the heat generated by electronics and increases the consistency of operation during long-term observation.

Built-in photo and video recorder

Features a built-in still image and video recorder to allow users to capture all the best moments during their observations. 16GB of internal storage allows for hours of video and tens of thousands of photos to be saved to the device, with an additional 16GB of free Cloud storage available on the free-to-download Stream Vision 2 app. One touch of a button is enough to take a photo of an interesting scene or to start recording video. Footage captured on the device is easily copied to a computer hard drive via a USB-C port.

Stream Vision 2 & Wi-Fi integration with iOS and Android devices

Built-in Wi-Fi connects the Merger LRF to Android and iOS smartphones via the Stream Vision 2 mobile app, opening up a wide range of connectivity options, including wireless device software updates, real-time image transmission from the device to the smartphone screen, photo and video sharing, image gallery, remote control of digital device functions, and access to the latest news from Pulsar via Newsfeed.

Dual 2.4/5 GHZ Wi-Fi waveband support

The Merger LRF XL50 features dual-band Wi-Fi support. Complimenting the standard smartphone 2.4 GHz connection frequency range with an effective 5 GHz range. This 5GHz connection offers better bandwidth, a faster data transfer rate, noise immunity, and improved connection stability - resulting in more productive and easier operation of the thermal imager when connected to a smartphone via Stream Vision 2.

A selection of 8 colour palettes

A choice of 8 colour palettes allows the user to observe their field of view more effectively, allowing them to optimise the unit for specific tasks, as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection; Rainbow and Ultramarine help increase the chances of recognition & identification; Red Monochrome, Sepia, and Violet are most suitable for long observation during the night.

IPX7 waterproof rated

The Merger LRF XL50 is IPX7 waterproof rated for protection against heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1m of water for up to 30 minutes.

Operation in extreme temperatures (-25 to +50°C)

Housing, power unit, optics and electronics of the Merger LRF XL50 have each been designed to withstand extreme temperatures, ensuring this device operated effectively in any environment. This device will remain operational in temperatures between -25°C and +50°C.

  • Features

    • 1024x768, 12 µm NETD <40 mK thermal sensor
    • Built-in precision laser rangefinder
    • 2300m detection range
    • 1000m ± 1m measuring range
    • Classic daytime binocular aesthetics
    • Ergonomic design
    • Comfortable placement of control buttons
    • 2.5х-20x variable magnification
    • 4x digital zoom
    • Magnesium alloy housing
    • Waterproof IPX7
    • Built-in video & still image recorder
    • 1024x768 HD AMOLED display
    • Fast aperture F50/1.0 germanium lens
    • Advanced image processing algorithms
    • Dual battery system (1x built-in, 1x replaceable)
    • Up to 8 hours battery life
    • Improved Wi-Fi connectivity
    • Stream Vision 2 compatible
    • 16GB internal storage
    • 16GB free cloud storage with Stream Vision 2
    • Wide operating temperatures of -25 to +50°C
    • 8 colour palettes
  • Further Information

    8 Colour Palettes

    Effective observation of the field of view can be achieved thanks to the Merger's choice of eight colour palettes. These palettes will allow the user to optimise the thermal bioculars for specific scenarios and adapt to changing conditions. White Hot, Black Hot, and Red Hot are perfect for object detection; Rainbow and Ultramarine will increase recognition and identification capabilities; and Sepia, Red Monochrome, and Violet are best for long, night-time observation.

    Up to 8 Hours of Battery Life

    Powered by a dual battery system which uses two rechargeable batteries (one built-in 4 Ah battery and one replaceable 3.2 Ah battery), the Merger LRF XL50 will provide up to 8 hours of power on a single charge (depending on temperature). The embossed design found on the replaceable battery's body allows for quick and easy determination of accurate battery positioning, making replacement of a flat battery a breeze, even in total darkness.

    2300m Detection Range

    Combining the Merger LRF XL50's long-distance objective lens with the highly sensitive thermal sensor allows these thermal imaging bioculars to provide an impressive detection range of up to 2300m of a standard 1.8m tall object or animal in complete darkness.

    Highly Durable Design

    These thermal imaging bioculars feature high-quality magnesium alloy housing, allowing for constant use in harsh conditions. Being simultaneously light and strong, the Merger LRF XL50 remains comfortable to use whilst providing protection of the internal components against shocks, drops, moisture, heat, and cold. The Magnesium alloy housing also acts as a heat sink, effectively dissipating heat produced via internal electronics and increasing the consistency of operation over long periods of observation.

    IPX7 Waterproof Rated

    The IPX7 waterproof rating adds an extra layer of protection against heavy rainfall and snow. They will even remain flawlessly operational when submerged in up to 1m of water for up to thirty minutes.

    Operating Temperatures

    Furthermore, the Merger LRF XL50 has been designed to operate effectively within a wide range of operating temperatures, with the housing, power unit, optics, and electronics remaining flawlessly operational in temperatures from -25 to +50°C.

    Built-In Video Recorder

    A built-in still image and video recorder will capture all those must-see, once-in-a-lifetime moments for the user to replay and share with friends and family. With 16GB of internal memory, the Merger LRF XL50 can store hours of videos, or thousands of photos all at the touch of a button. Footage or photos can then be transferred to a computer using the USB-C connection, or via the Stream Vision 2 app's 16GB of free cloud storage.

    Variable Magnification

    With a variable magnification of 2.5x - 20x, and a digital zoom of up to 4x, the Merger LRF XL50 will provide improved focus and object recognition at significant distances. The digital zoom is adjustable either gradually in 2x step, or continuously adjustable for an optimum, customised field of view for different situations.

    Built-In Wi-Fi

    These thermal imaging bioculars also feature a built-in Wi-Fi module, offering improved connectivity across its 2.4/5 GHz waveband support. The standard 2.4GHz Wi-Fi channel required to connect to a smartphone is complemented by a 5GHz connection to offer better bandwidth, faster data transfer rates, noise immunity, and improved connection stability, providing a more productive, easy operation of the Merger LRF XL50 when connected to a smartphone or tablet.

    Stream Vision 2

    The built-in Wi-Fi module within the Merger LRF XL50 enables quick connection to your Android or iOS smartphone or tablet using the Stream Vision 2 app, offering a wide range of connectivity features, including:

    Remote Control

    Use your mobile phone as a wireless remote, so you can control and adjust your device's settings. You can then see all the changes you make on your smartphone or tablet screen in real-time. You can also record footage or take still images using your mobile phone.

    Browse & Share

    Browse through all your photos and videos recorded on your thermal or night vision devices. You can then download and even share these files with friends.

    Firmware Updates

    Enjoy all the latest features and stay up to date by remotely updating your device using Stream Vision's firmware update abilities.
